Glass tempering
HSA Poland
Glass is an inherently brittle material. Therefore, in order to increase its utility values and to improve its safety we subject our products to professional glass tempering.
Tempering involves glass processing at 620-680 °C followed by rapid air cooling. During the process, the external appearance of glass does not change, but its strength increases considerably. Owing to tempering, its resistance to impact, mechanical factors, and stresses associated with surface temperature changes increases.
The mechanical strength of tempered glass is 5 to 7 times higher than the strength of normal glass. Tempered glass has a broad scope of application in the construction industry, e.g. in façades, shower cubicles, glass doors, and in modern furniture.
We present our device for tempering flat and soft coat (low-E) glass.
Parameters of a fully automated flat glass tempering unit, equipped with modern convection and energy saving systems:
- Glass thickness range: from 3.8 mm to 19 mm;
- Tempering: EN 12150-1 – 2000, ANSI Z97.1 – 2009
- 3.8–10 mm heat strengthening EN 1863
- 3.8–8 mm heat strengthening 1ASTM C1048
- Loading surface: 2400 x 4800 mm
Maximum float glass dimensions:
- 3,8 mm and more 1800 x 2800 mm
- 4,7 mm and more 2400 x 4800 mm
Maximum dimensions for coated low-emissive glass 0.04, 0.02, and 0.01:
- 3,8 mm and more 1800 x 2800 mm
- 4,7 mm and more 2300 x 3800 mm
- 5,7 mm and more 2400 x 4800 mm

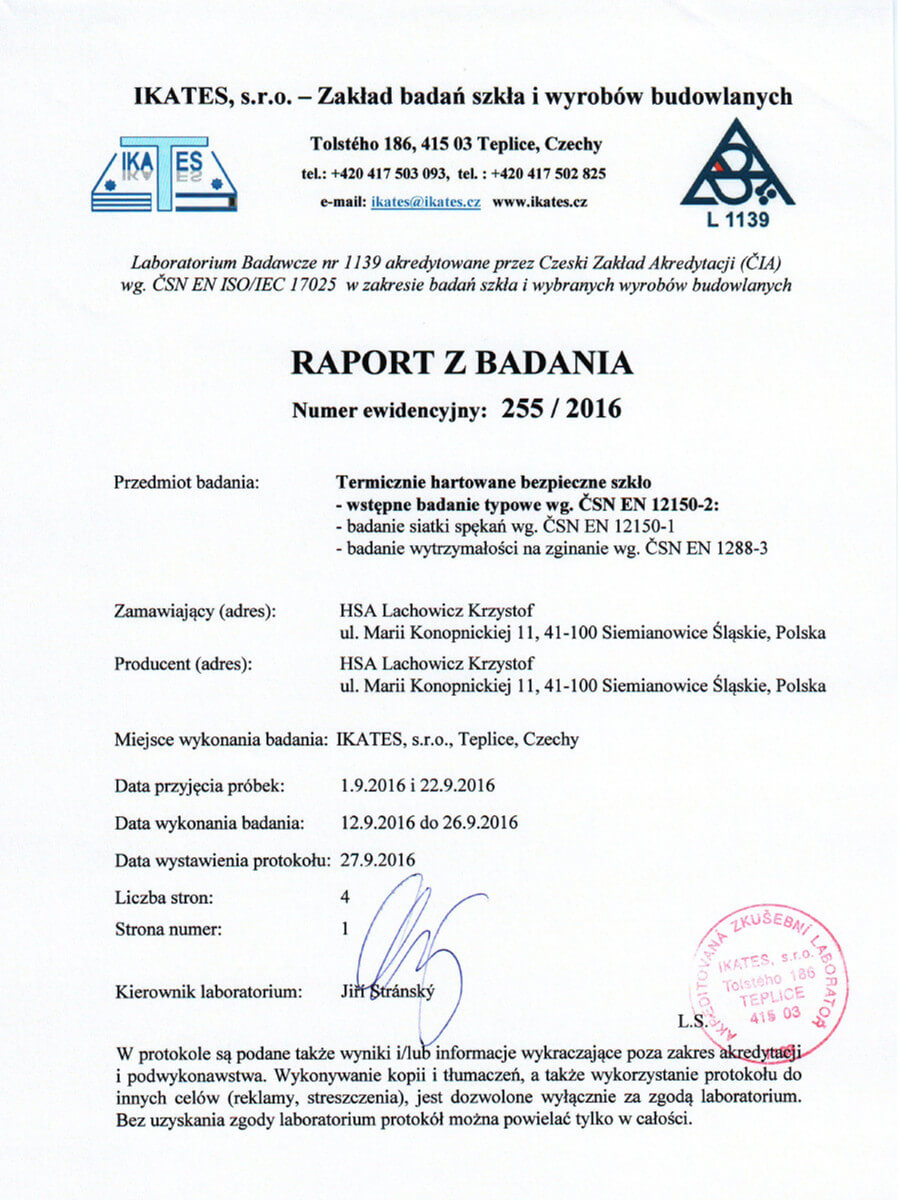

Certificates
